ESD Static Dissipative Flooring Tiles

Product Introduction

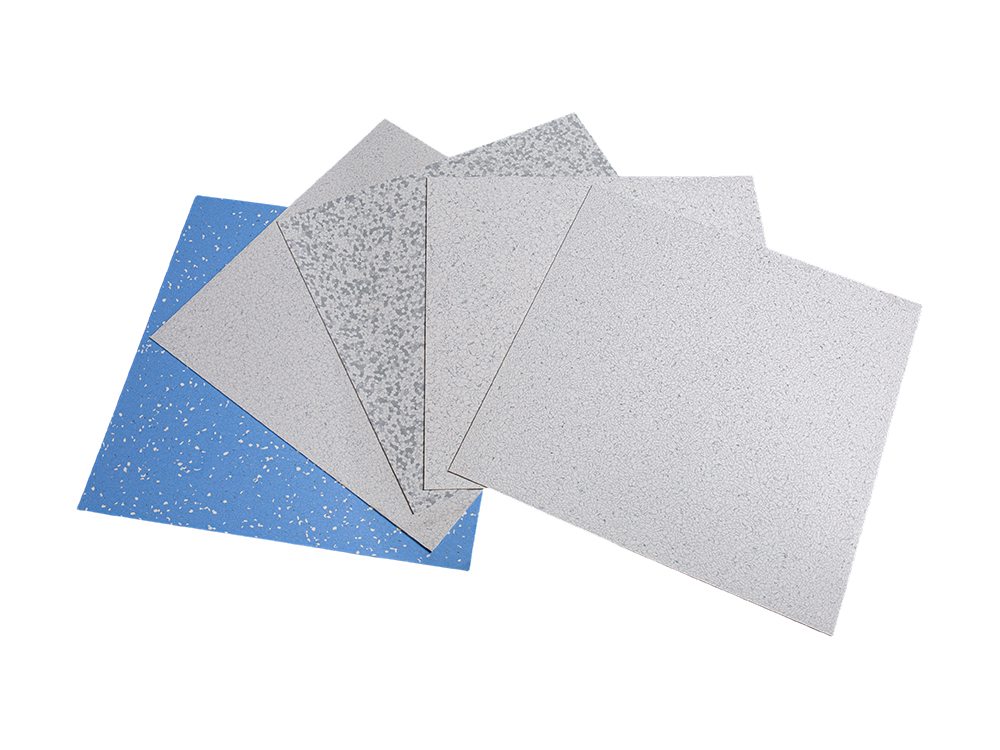

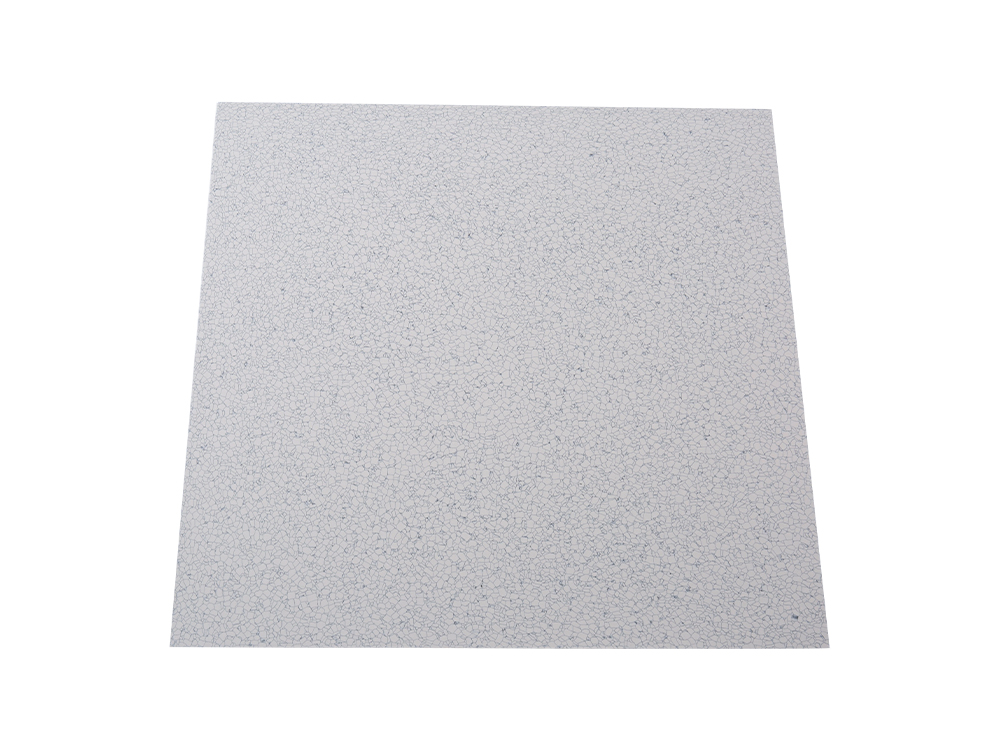

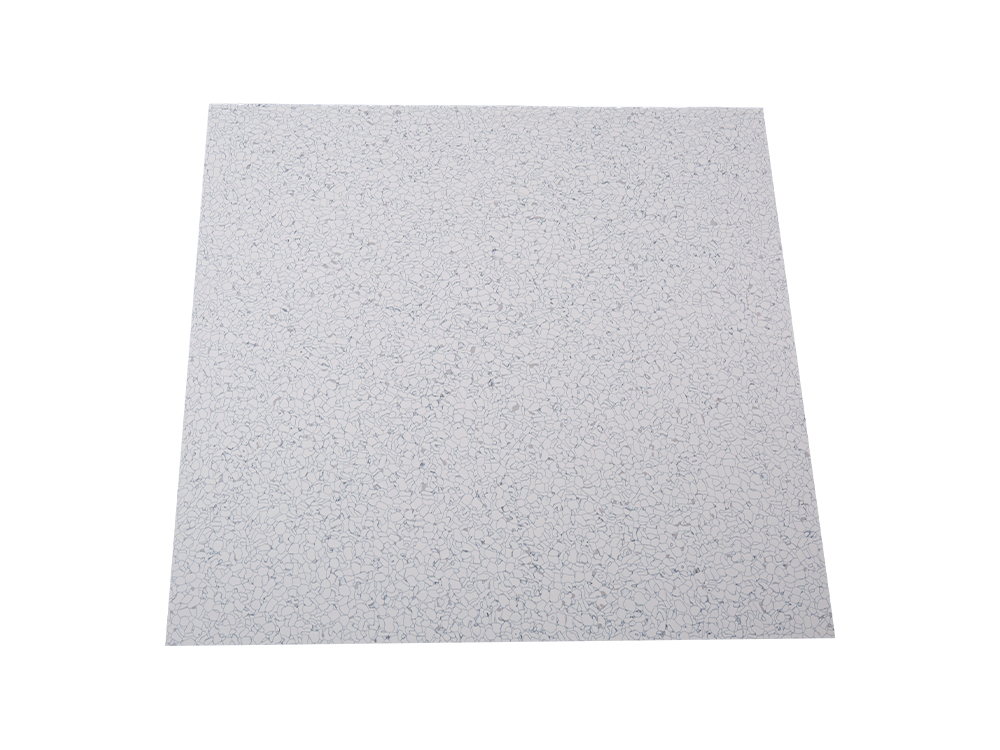

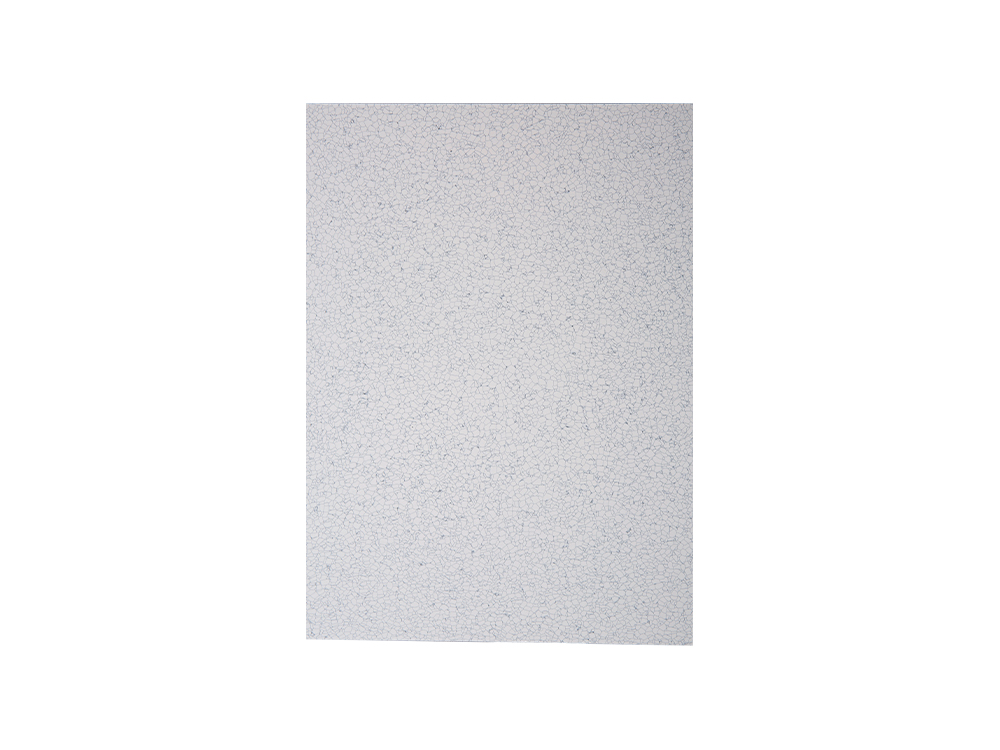

ESD Flooring Tiles are modular anti-static PVC tiles made from a composite of electrostatic dissipative (ESD) materials. They can be installed as individual tiles or connected in combinations, with a typical thickness ranging from 2.0–3.0mm. These tiles offer permanent anti-static properties, slip resistance, wear resistance, and chemical corrosion resistance. They are easy to replace or maintain and are ideal for server centers, electronic workshops, laboratories, and high-precision medical areas.

Core Advantages

Modular Design: Removable and easy to replace, suitable for partial maintenance or customized installation plans.
Permanent Anti-static: Conductive/dissipative properties are stable and do not degrade over time.
Wear-resistant and Durable: Suitable for high foot traffic areas and regions with frequent equipment movement.
Slip-resistant and Fire-resistant: Meets BF1 fire rating, high friction coefficient, reducing slip risks.
Chemical Corrosion-resistant: Capable of handling cleanroom cleaning agents and certain chemicals.

Applicable Scenarios

Microelectronics manufacturing workshops, server rooms, semiconductor plants, SMT/PCB assembly and testing areas, medical cleanrooms, aerospace experimental areas.

Technical Parameters

Thickness: 2.0–3.0mm
Conductivity: 10⁴ – 10⁹ Ω (customizable)
Dimensions: 600×600mm / 610×610mm / 914×914mm / 900×900mm
Surface Treatment: Polished / Matte
Weight: Approximately 3980–5700g/m², depending on thickness.

Item	Standards	Specifications
Thickness	SJ/T11236-2020	2.0, 2.5, 3.0mm
	SO 24346(EN428)
Electrical Resistance	SJ/T11236-2020	110 - 110Ω	110 - 1100
	EN 1081	10 - 10Ω	10 - 100
Stating Voltage	AATCC - 134	50V	100V
	SJ/T 10694 - 2006	<100V <2 KV
	EN1815
Body Voltage	ANSI ESD STM97.2	<100V
Static Decay	GJB3007A - 2009	≤2(Sec) 0.01(Sec)
	Federal Test Method 1018 Method 4046
Resistance To Wear	SJ/T11236-2020	≤0.02 g/cm² P
	EN660 - 2
Fire Resistance	SJ/T11236-2020	FV - 0 B(B - 51,t0) Class B1 - S1
	GB8624 - 2012
	ASTM E648 - 2009a
	EN13501 - 1
Dimensiona	ASTM F2199	≤0.05 % ≤0.05 %
	ISO 23999 - 2018(EN434)
Slip Resistance Wet	DIN 51130	R9
Residual Indentation	GB/T4085 - 2015	0.15mm≤lgs0.40mm 0.01mm
	ISO 24343 - 1(EN433)
Color Fastness	SO 105 - B02	≥6
Chemical Products Resistance	EN ISO26987(EN423)	OK
Toxic Testing	GB18586 - 2001	OK
	EN 71 - 3
