The ABA structure consists of a PVC surface layer, a wood-plastic composite core, and a PVC balance layer. The PVC balance layer effectively reduces the deformation rate caused by temperature and humidity changes, ensuring long-term stability of the floor.
Core Performance
Excellent Waterproofing: Fully PVC-coated, no deformation after 72 hours of water immersion, suitable for kitchens, bathrooms, and damp areas.
Superior Wear Resistance: UV coating on the surface with wear resistance ≥6000 cycles, with a lifespan of over 20 years.
Flat and Stable: PVC balance layer reduces warping and sinking, ensuring long-term installation stability.
Silent and Comfortable: IXPE underlayment reduces footstep noise by 15dB, offering a softer feel than tiles.
Zero Formaldehyde: Certified by FloorScore, Greenguard Gold, and CE, making it safe for mothers and babies.
Product Highlights

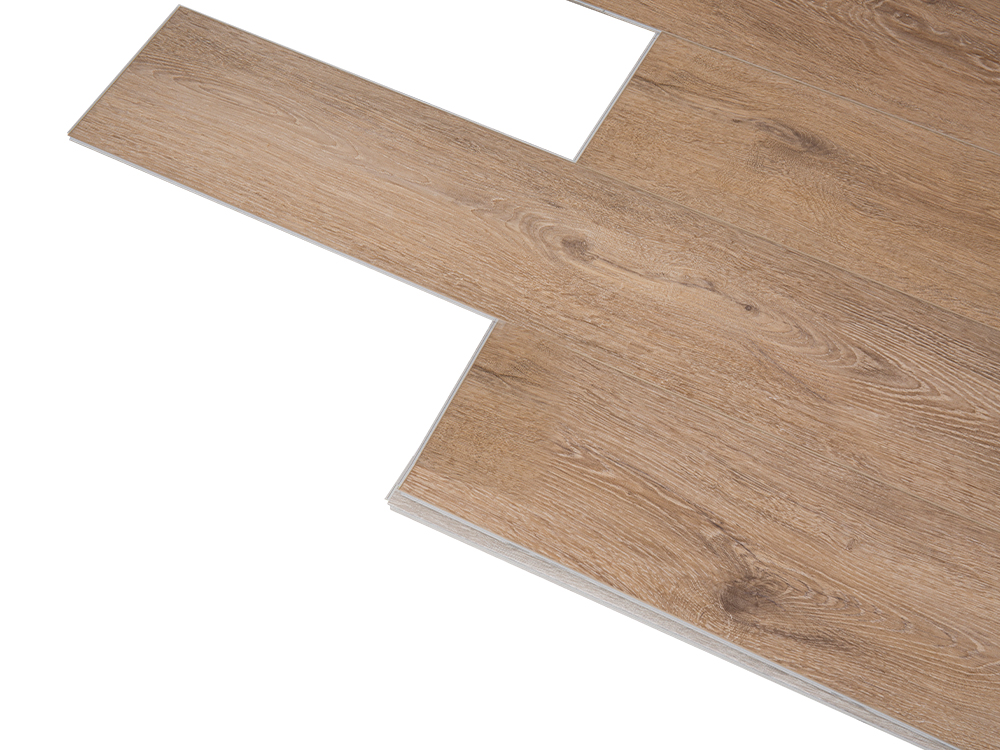

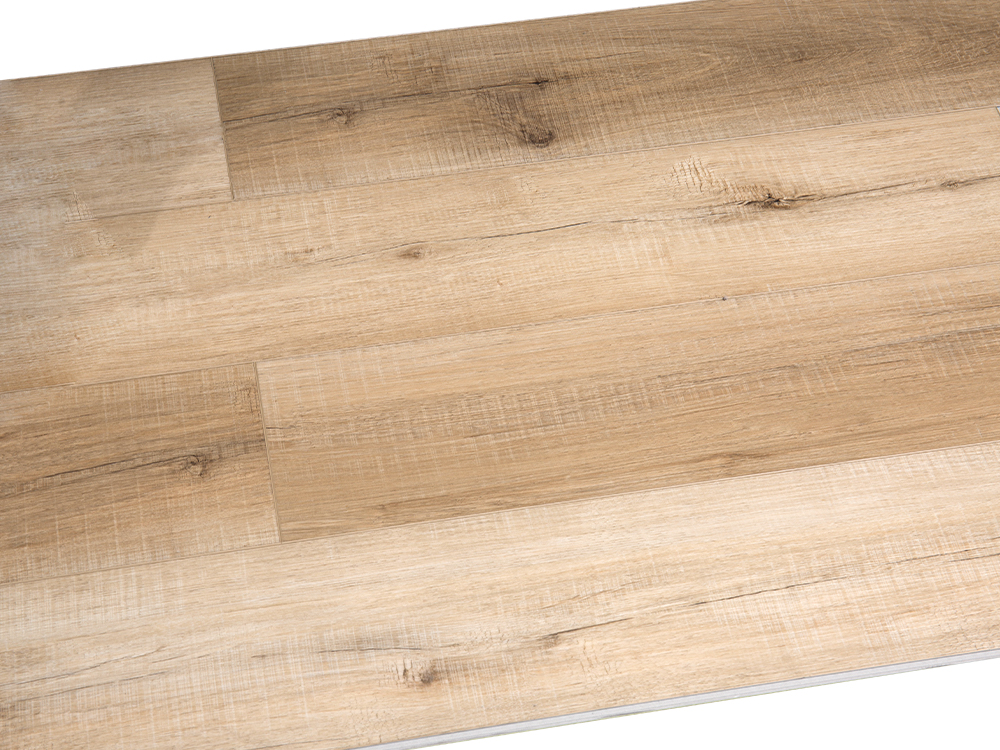

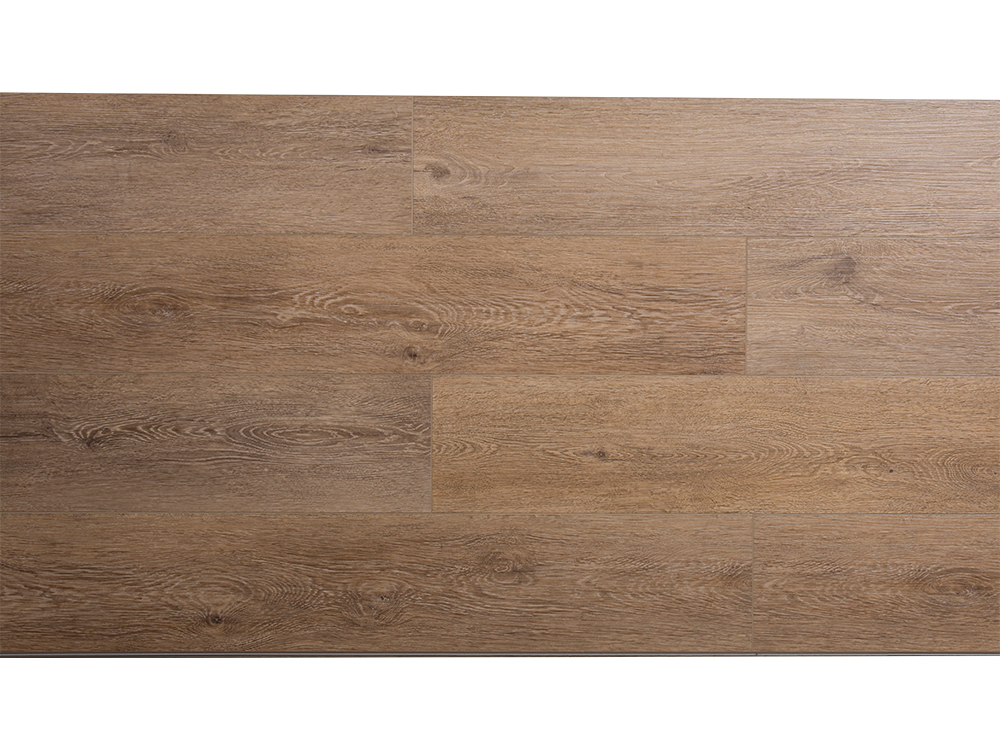

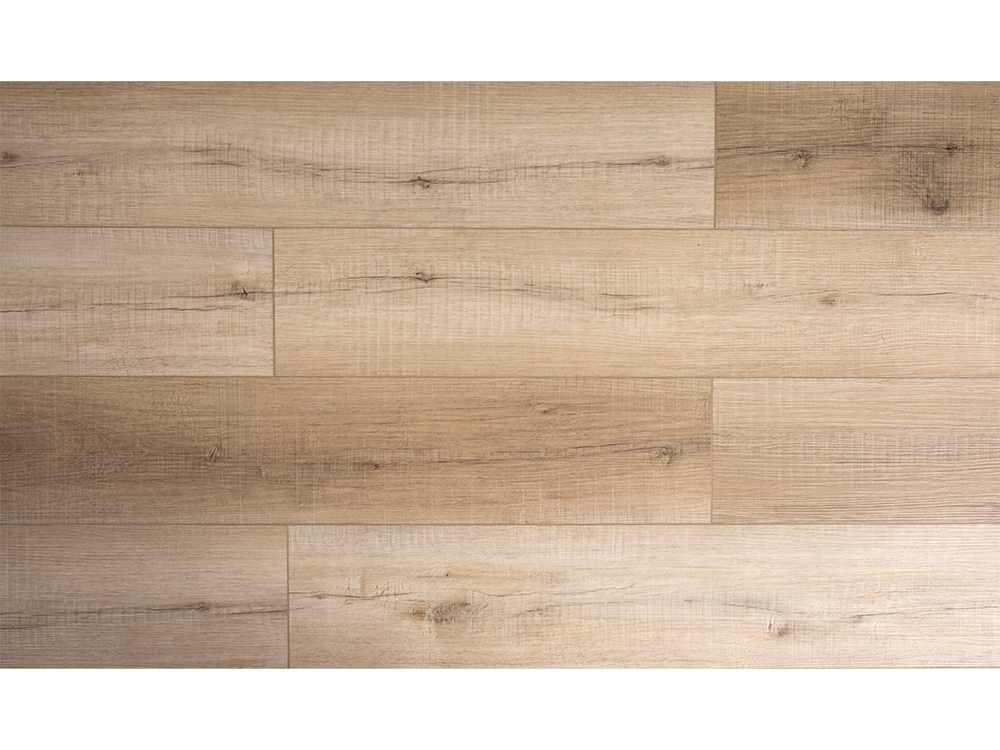

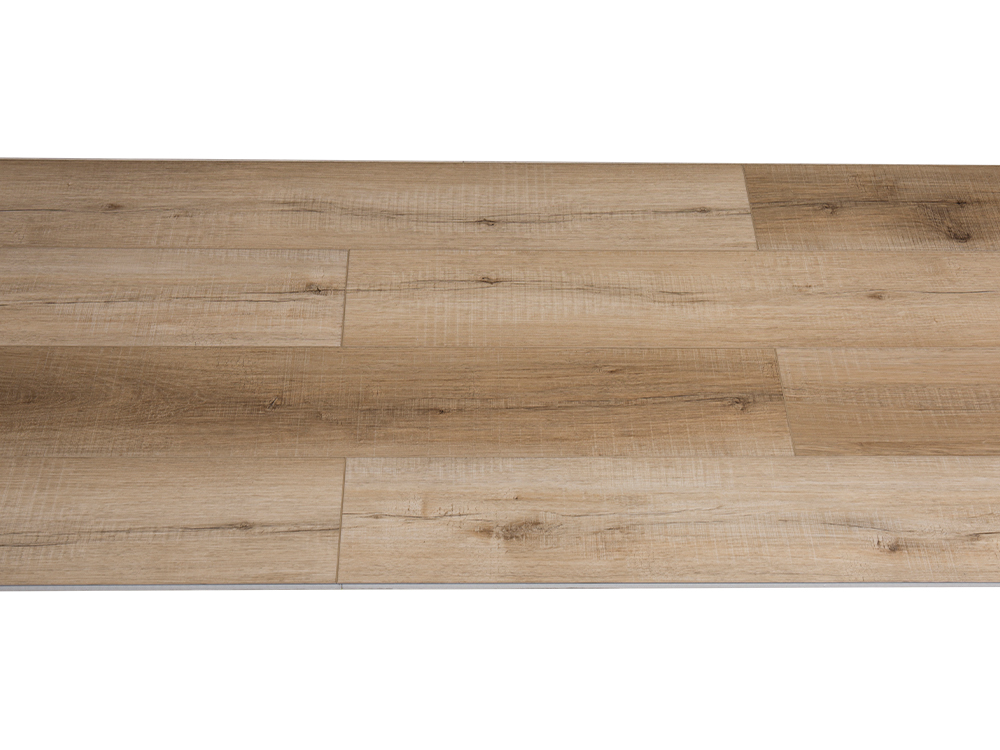

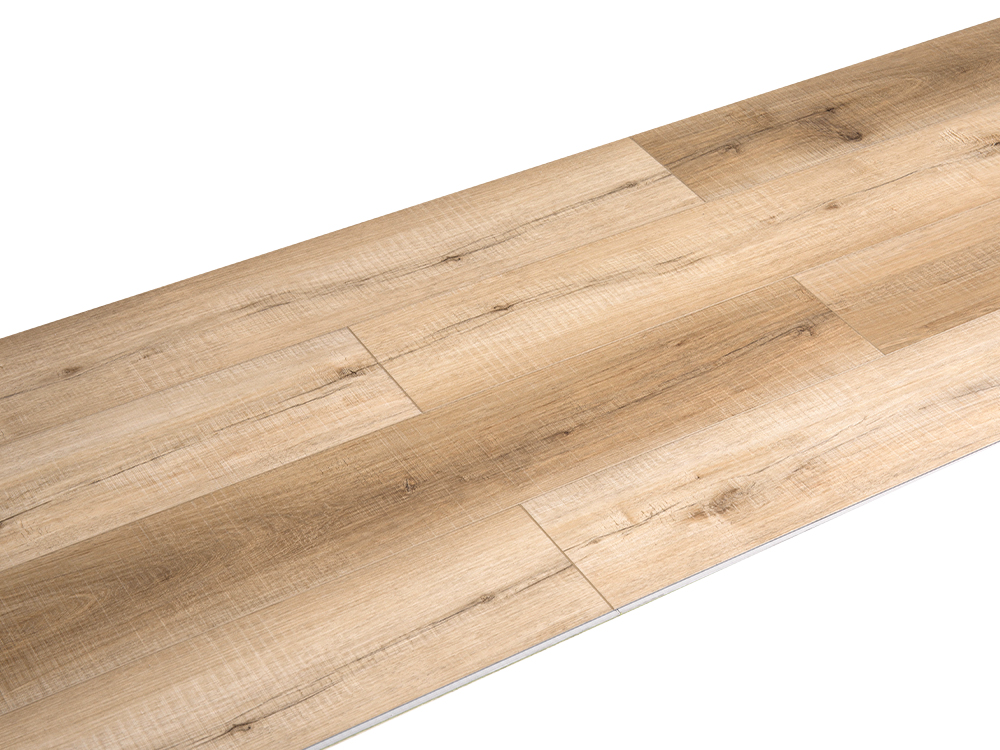

Realistic Wood Grain: 3D synchronized embossing technology replicates natural textures like oak and walnut.

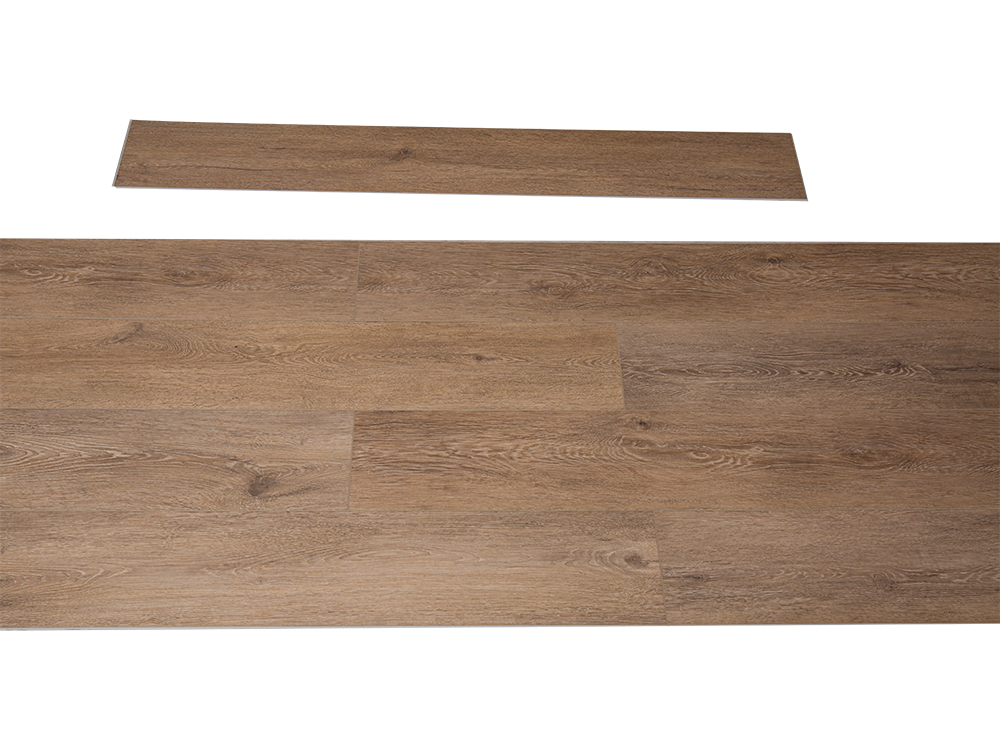

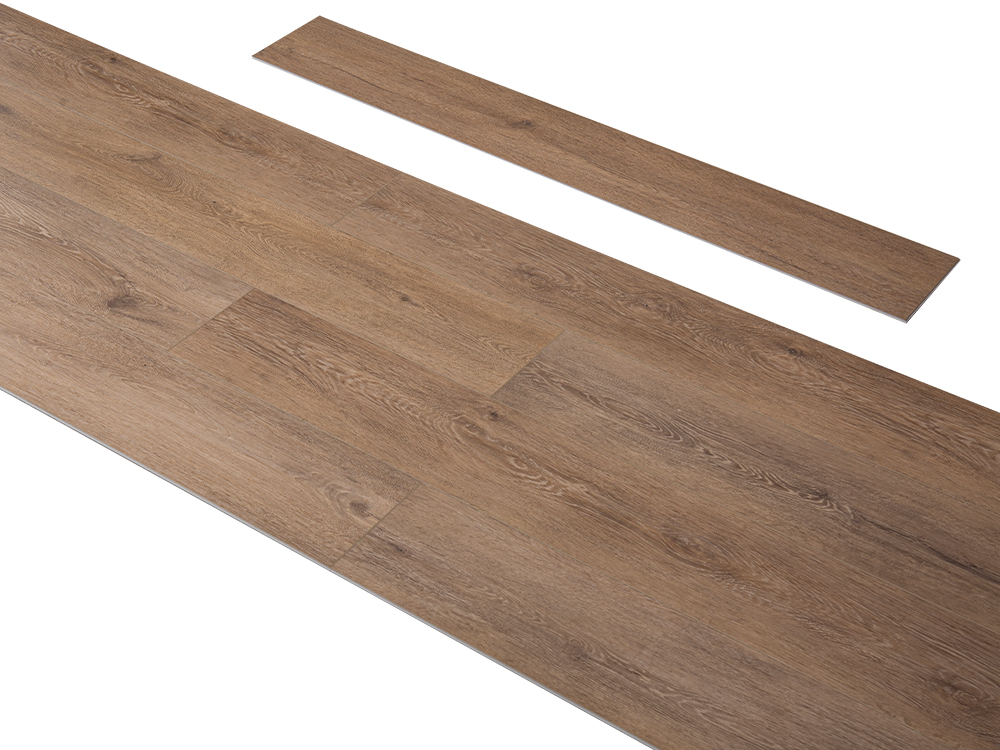

Click-lock Installation: No glue required, DIY assembly, usable in 24 hours.
Compatible with Underfloor Heating: Heat-resistant, suitable for underfloor heating systems.
Environmental Deformation Resistance: The ABA structure enhances resistance to expansion and contraction, making it ideal for areas with large temperature differences between the north and south.
| Order No. | Model | Specification: 1219.21805.0*0.5 | Detection Time: 20250314 |
| Temperature: 25°C | Humidity: 65% RH | ||
| Test Item | Test Standard | Test Result | Judgment Result |
| Total Thickness (mm) | ±0.15 (EN428) | 5.03 | Qualified |
| Dimension Difference (mm) | ±0.30 (EN427) | 180.01, 1219.21 | Qualified |
| Right Angle (mm) | ≤0.25 | 0.01 | Qualified |
| Straightness (mm) | ≤0.25 | 0.01 | Qualified |
| Peeling Force N / (5*10mm) | ≥80N (EN431) | 121 | Qualified |
| Longitudinal Shrinkage (%) | ≤0.4% (72°C 2hr) | 0.15% | Qualified |
| Transverse Shrinkage (%) | ≤0.4% (72°C 2hr) | 0.11% | Qualified |
| Warpage (mm) | ≤2.0 (72°C 2hr) (EN434) | 0.2 | Qualified |
| Locking Tensile Force (30mm) - Longitudinal | ≥110 N | 157 | Qualified |
| Locking Tensile Force (30mm) - Transverse | ≥110 N | 164 | Qualified |
| Glossiness at 60 Degrees | LZ Glossiness | 6.9 | Qualified |
| Wear Layer Thickness | 13% - 10% | 0.5 | Qualified |
| Scratch Resistance | ≥2500g (Top Needle Scratch Tester) | 2500 | Qualified |
Anhui Hanhua Building Materials Technology Co., Ltd. is a large-scale manufacturer specializing in PVC flooring and eco-friendly magnesium oxide (MGO) boards. The company has an annual production capacity of over 6 million square meters of various new material flooring. Most of the products are exported to developed markets such as the United States, Australia, and the European Union (including Germany, the UK, and France).
All products exceed EU standards in quality and environmental protection, and have obtained CE certification, as well as FloorScore and GreenGuard certifications from the United States. Domestically, the company’s “Swanflor” brand flooring is widely used in interior decoration and has received high praise from customers.
Our product lines include four main series under the Xueyan brand:
SPC (Stone Plastic Composite) Flooring
WPC (Wood Plastic Composite) Flooring
LVT (Luxury Vinyl Tile) Flooring
MGO (Magnesium Oxide) Fireproof Board
SPC flooring, known locally as stone plastic flooring, is waterproof, fire-resistant, and environmentally friendly.
MGO fireproof boards, known in China as wood-magnesium boards, are made from magnesium oxide, wood powder, and straw powder. These boards are eco-friendly, Class A fire-rated, and can also be used as wall panels. They are easy to install and are an ideal material for interior decoration, especially for prefabricated buildings. MGO boards do not burn in fire and do not swell in water, making them a reliable choice for modern construction.
