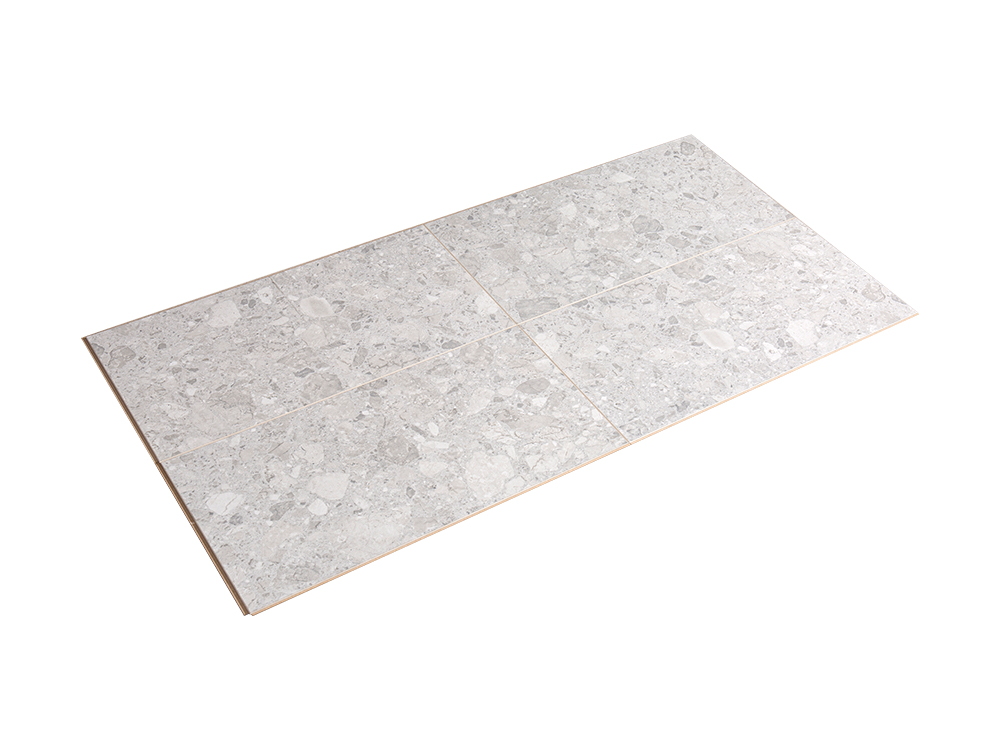

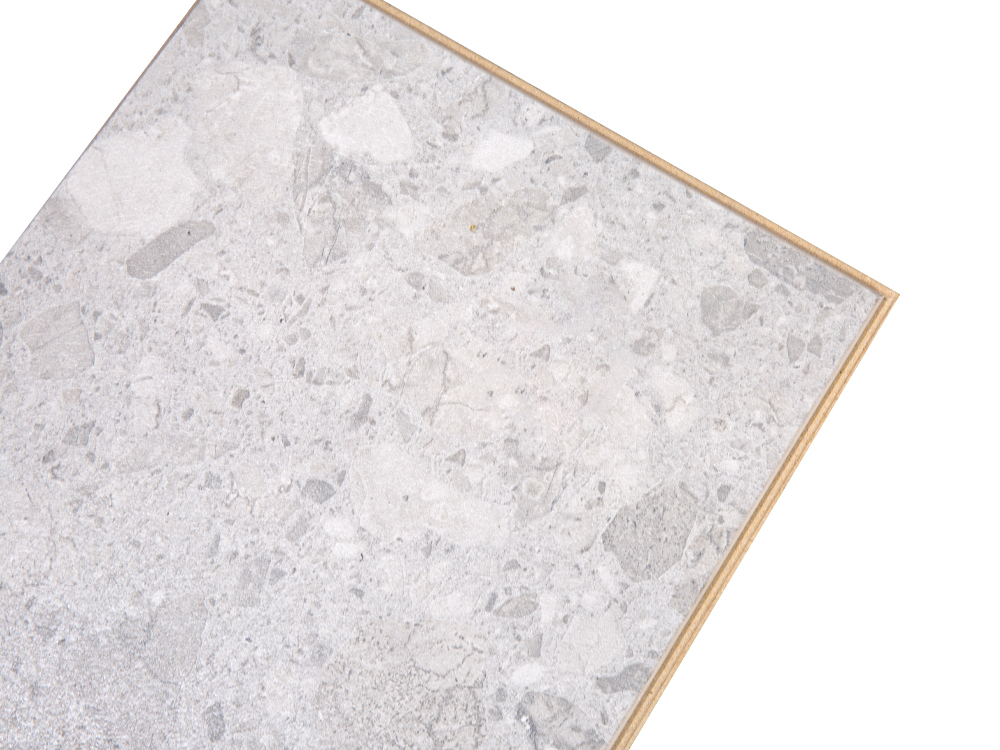

The PVC veneered ecological wood magnesium board is a new type of environmentally friendly building decorative panel. It uses a wood magnesium substrate (MgO-MgCl₂ composite material) as the core layer, with a PVC color film decorative layer on the surface and a PVC balance layer on the back, forming a stable composite structure. This product combines excellent decorative properties, moisture resistance, and B1-level fire resistance, and is widely used in interior wall, ceiling, partition, and other decorative applications.
Core Features
1.Excellent Fire Resistance
Meets B1 fire resistance standards, self-extinguishing when exposed to fire, effectively delaying the spread of flames.
The wood magnesium substrate itself has good fire resistance, and the PVC veneer further enhances the flame retardant effect.
2. Surface Waterproof, Stable and Durable
The PVC veneer effectively prevents moisture penetration, ensuring the panel structure remains stable, without deformation or cracking over time.
3. Green and Environmentally Friendly, Safe and Healthy
The substrate contains no formaldehyde or asbestos, and the PVC film complies with REACH environmental standards.
SGS tested with near-zero VOC emissions, suitable for places with high environmental requirements, such as hospitals and schools.
4. Soundproof and Noise Reduction, Comfortable Experience
The special composite structure effectively absorbs sound waves, reduces indoor noise, and enhances the tranquility of the space.
5. Lightweight, High Strength, Easy to Install
Reduces building load, suitable for high-rise buildings and renovation projects.
Strong and durable, supports various installation methods such as cutting, drilling, and nailing.
Product Highlights
1.Rich Surface Decorative Effects

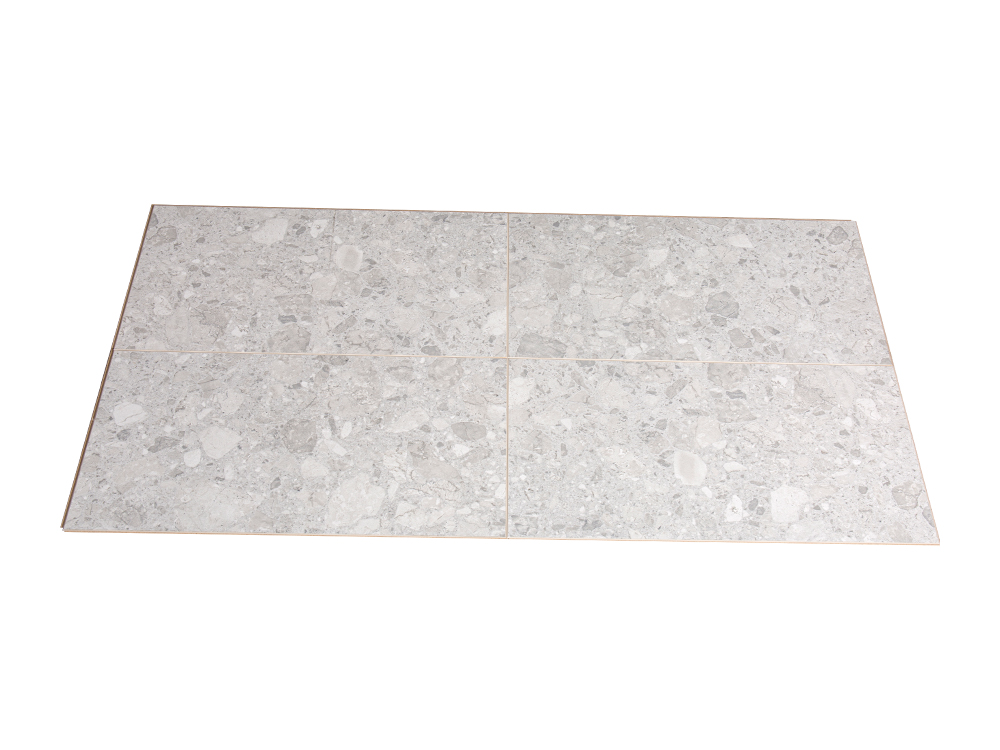

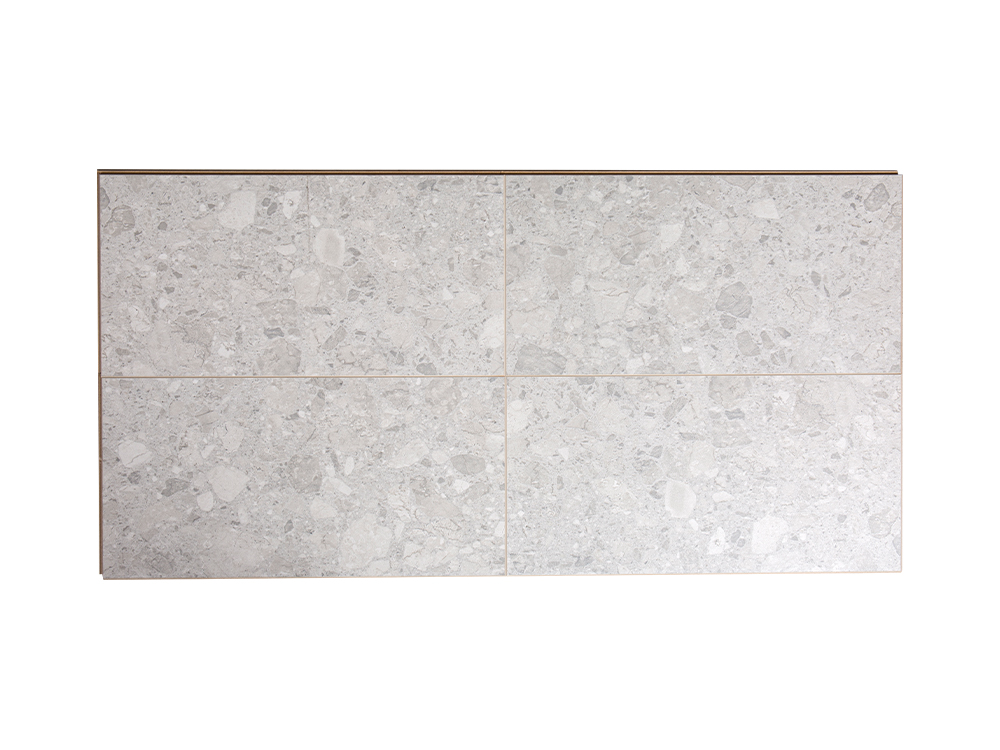

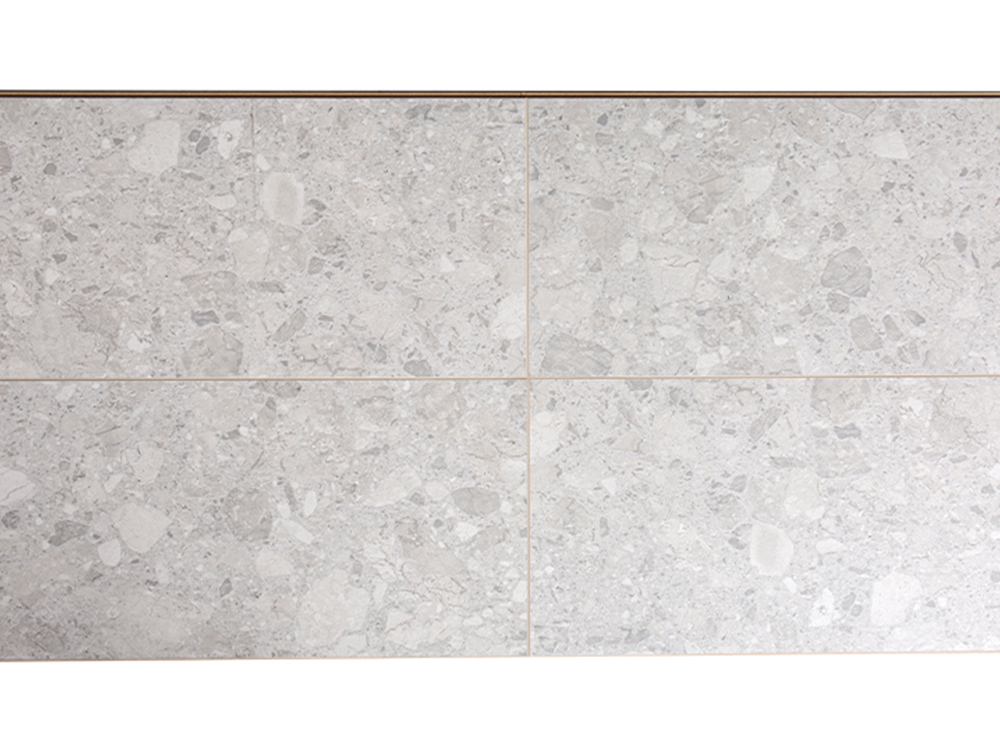

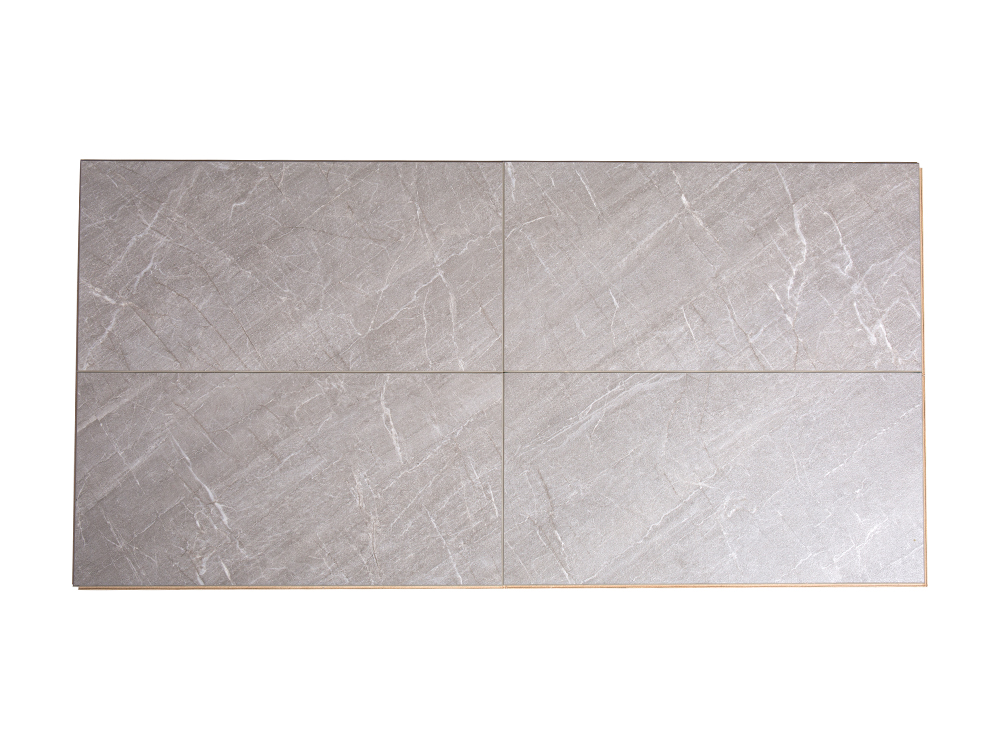

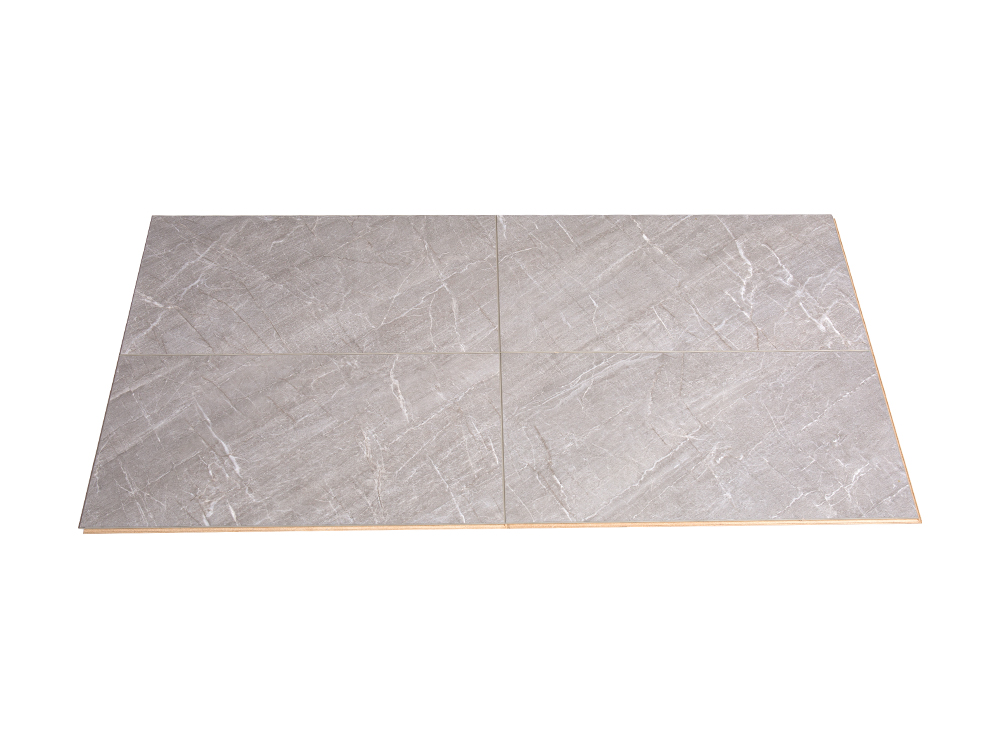

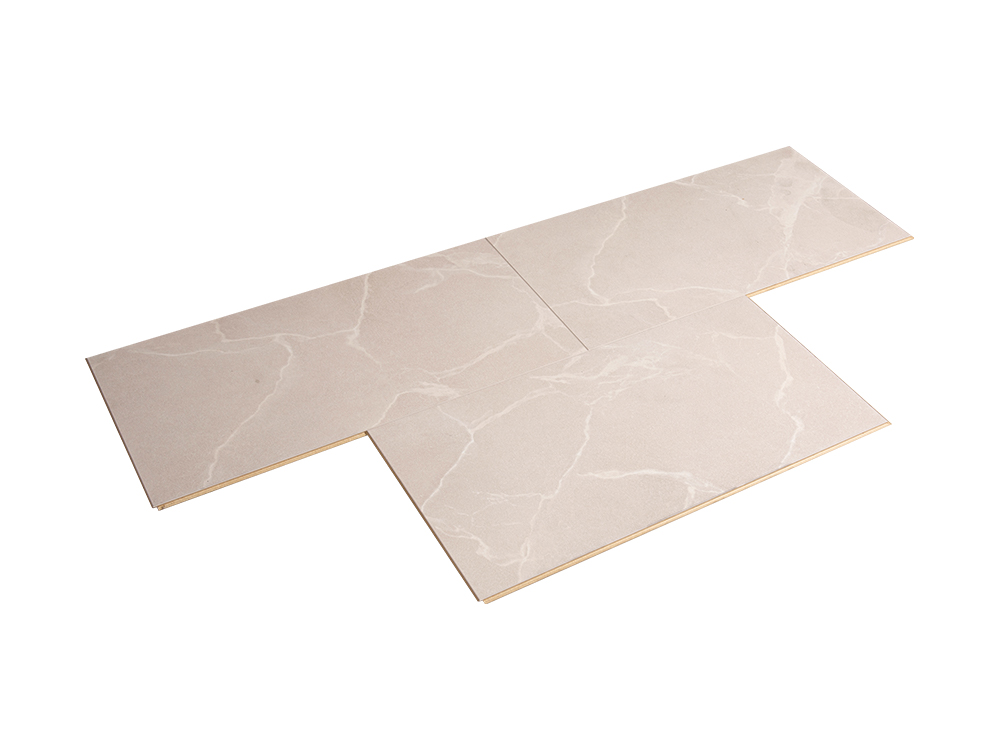

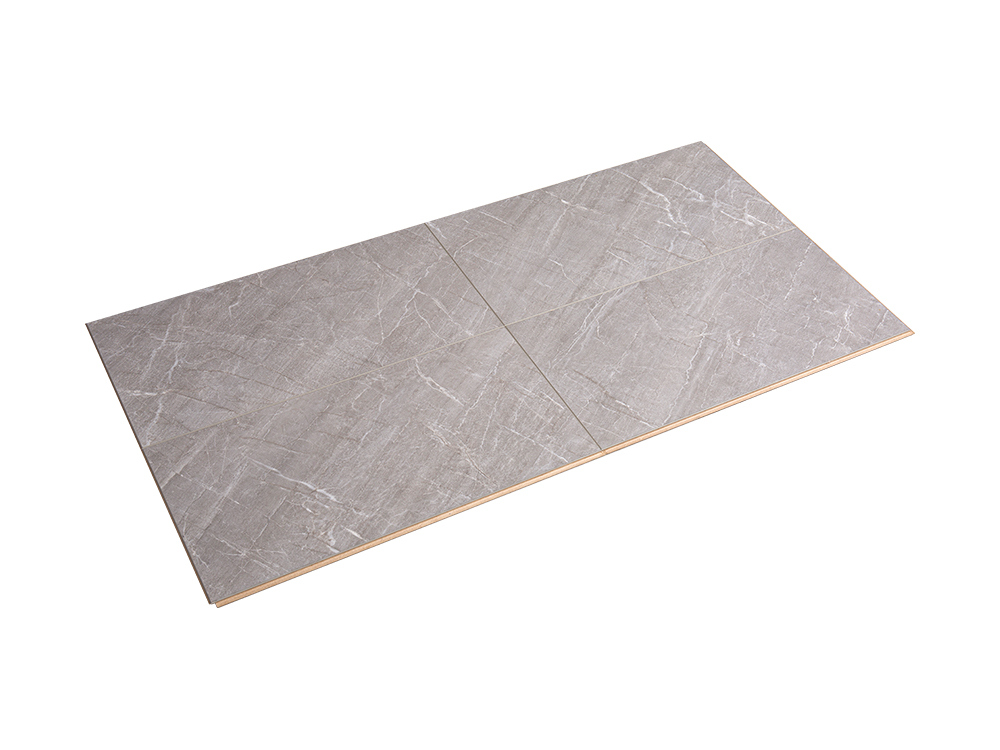

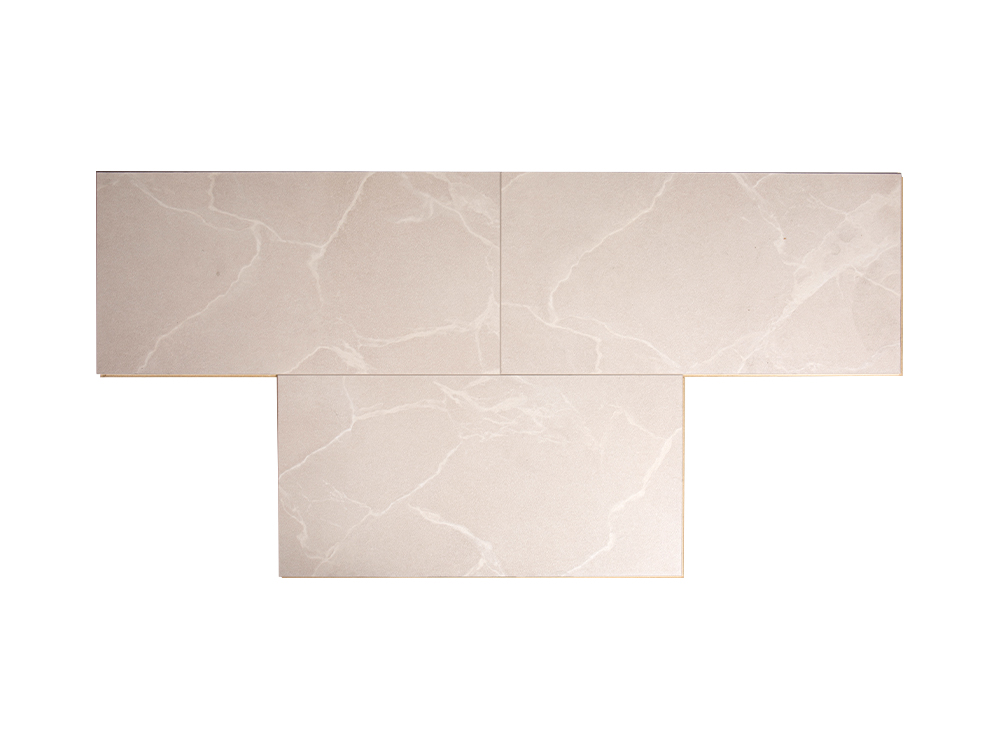

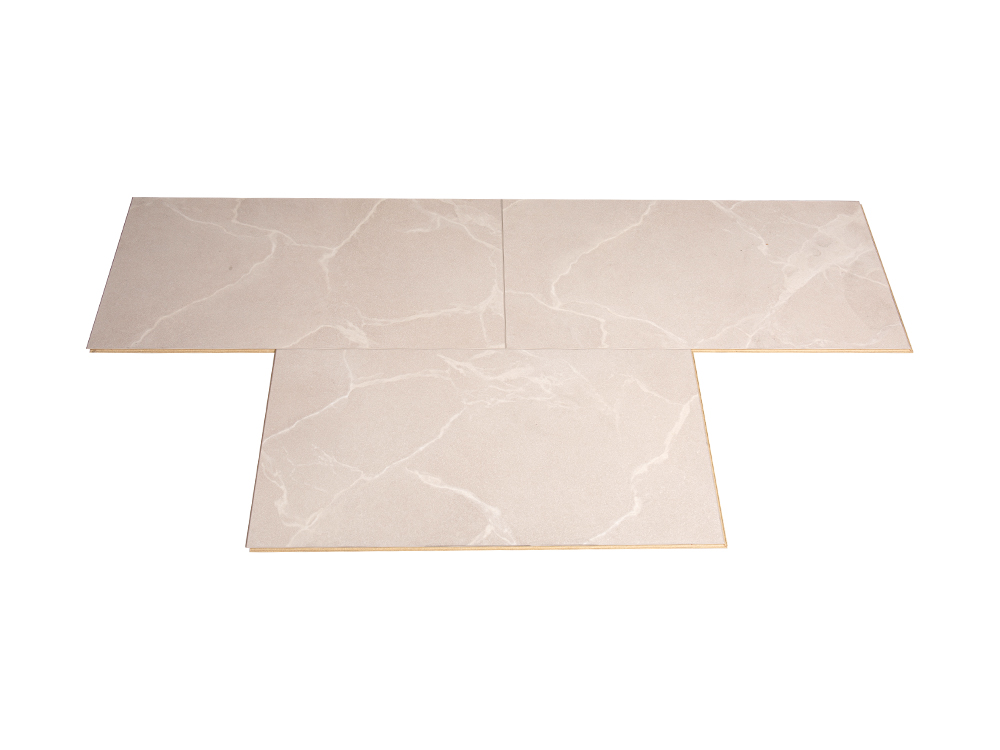

The PVC color film layer provides various design options, including wood grain, stone pattern, solid colors, and metallic finishes, meeting the needs of different decorative styles.
The surface can be processed into glossy, matte, or embossed finishes to enhance its decorative appeal.
2. Easy to Process, Flexible Installation
Supports multiple installation methods such as locking, adhesive bonding, and keel fixing to meet various construction needs.
Can be cut and spliced at will, improving construction efficiency and reducing labor costs.
3. Economical and Durable, Easy Maintenance
The service life lasts 15-20 years. The PVC surface is scratch-resistant and stain-resistant, requiring only a damp cloth for daily cleaning.
Overall cost is lower than traditional decorative materials (such as gypsum board, calcium silicate board + veneer).
| ITEM | TEST RESULT |
| DIMENSIONAL STABILITY AT HIGH HUMIDITY | 0% ((Temperature 40 ± 2) °C) Humidity 90 - 95% |
| 0% ((40 ± 2) °C) 90 - 95% Humidity | |
| THICKNESS SWELLING | 0.73% |
| REACTION TO FIRE CLASSIFICATION | A1 (CORE SHEET) |
| DETERMINATION OF DIMENSIONAL STABILITY & CURLING AFTER EXPOSURE TO HEAT | MD: 0.25% AMD: 0.20% |
| CURLING: 0.5MM | |
| DETERMINATION OF LOCKING STRENGTH WITH A TENSILE TESTING MACHINE | MD: 9.13KN/M |
| AMD: 4.64KN/M | |
| PENTACHLOROPHENOL(PCP) | Not detected |
| ND | |
| FORMALDEHYDE EMISSION | Not detected |
| ND | |
| HEAVY ELEMENTS,SOLUBLE MIGRATED ELEMENT | < 50ppm |
Anhui Hanhua Building Materials Technology Co., Ltd. is a large-scale manufacturer specializing in PVC flooring and eco-friendly magnesium oxide (MGO) boards. The company has an annual production capacity of over 6 million square meters of various new material flooring. Most of the products are exported to developed markets such as the United States, Australia, and the European Union (including Germany, the UK, and France).
All products exceed EU standards in quality and environmental protection, and have obtained CE certification, as well as FloorScore and GreenGuard certifications from the United States. Domestically, the company’s “Swanflor” brand flooring is widely used in interior decoration and has received high praise from customers.
Our product lines include four main series under the Xueyan brand:
SPC (Stone Plastic Composite) Flooring
WPC (Wood Plastic Composite) Flooring
LVT (Luxury Vinyl Tile) Flooring
MGO (Magnesium Oxide) Fireproof Board
SPC flooring, known locally as stone plastic flooring, is waterproof, fire-resistant, and environmentally friendly.
MGO fireproof boards, known in China as wood-magnesium boards, are made from magnesium oxide, wood powder, and straw powder. These boards are eco-friendly, Class A fire-rated, and can also be used as wall panels. They are easy to install and are an ideal material for interior decoration, especially for prefabricated buildings. MGO boards do not burn in fire and do not swell in water, making them a reliable choice for modern construction.
